Precision-engineered soaking tubs, hydrotherapy plunge units, and fluted matte black designs available for OEM/ODM volume orders.
The global luxury sanitaryware sector has experienced a profound shift toward matte black and high-gloss black acrylic freestanding bathtub installations. For professional B2B procurement officers, hotel project managers, and architectural distributors, evaluating a manufacturer's supply chain requires a deep understanding of polymer engineering, structural load capacity, thermal insulation coefficients, and surface cross-linking durability.
Unlike standard white sanitaryware, black acrylic bathtub production requires ultra-pure, high-molecular-weight Polymethyl Methacrylate (PMMA) sheets. Minor material impurities or uneven pigment distribution during thermoforming manifest instantly as surface discoloration, micro-blistering, or structural degradation under thermal stress.
Information Gain Metric: Pure Lucite® cross-linked PMMA acrylic maintains a thermal conductivity coefficient ($k$) of approximately $0.19 \text{ W/m}\cdot\text{K}$, outperforming traditional cast iron ($50 \text{ W/m}\cdot\text{K}$) and enamelled steel ($45 \text{ W/m}\cdot\text{K}$) by over 250 times in heat retention efficiency. Water temp drop rate is restricted to less than $1.2^\circ\text{C}$ over 30 minutes in ambient conditions.
To withstand commercial load demands (exceeding 500 kg static payload tests), leading B2B exporters employ a multi-tier composite reinforcement process:
Non-recycled, UV-stabilized sanitary grade acrylic sheet infused with carbon-black micro-pigment to resist fading, yellowing, and optical oxidation.
Fiberglass-Reinforced Polymer resin spray-up matrix applied underneath, ensuring structural rigidity, high impact resistance, and dampening acoustic resonance.
Fully integrated #304 stainless steel support frame equipped with 6-8 adjustable self-leveling feet, distributing static hydraulic mass evenly across the subfloor.
| Evaluation Parameter | Sanitary Virgin Acrylic (PMMA+FRP) | Solid Surface / Mineral Resin | Cast Iron Enamel Tubs |
|---|---|---|---|
| Average Unit Mass (1700mm Tub) | 45 kg – 65 kg (Low Logistics Cost) | 120 kg – 180 kg (High Freight Cost) | 150 kg – 220 kg (Requires Subfloor Reinforcement) |
| Thermal Conductivity Coefficient ($k$) | 0.18 - 0.20 W/m·K (Superior Heat Retention) | 0.45 - 0.60 W/m·K (Moderate Heat Retention) | 48.0 - 52.0 W/m·K (Rapid Heat Dissipation) |
| Surface Repairability (Scratches/Chips) | High (Buffable with 2000-grit compound) | Medium (Requires sanding & color paste) | Low (Re-enameling requires high-heat kiln) |
| International Standard Compliance | cUPC, CSA B45.5, IAPMO Z124, CE Mark | EN 14516, CE, ISO 9001 | ANSI Z124.1, CE Mark |
| B2B Shipping Container Density | High (40HQ holds ~64-80 stacked units) | Moderate (~36-44 units due to weight limits) | Low (~24-30 units max weight capacity) |
Strategic purchasing managers operating within hospitality renovation, luxury villa development, and multi-unit residential contracting are shifting procurement preferences based on distinct end-user behavior patterns. Understanding these market forces enables buyers to make data-driven catalog selections.

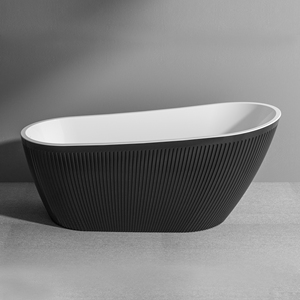

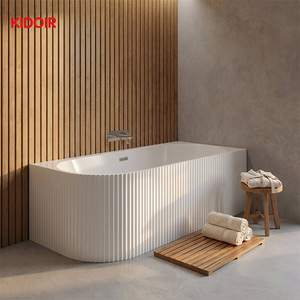

Driven by contemporary Scandinavian and Japandi interior design trends, striped/fluted exterior walls (such as the Striped Design V-Groove Fluted Bathtub) have experienced a 140% surge in architectural specification. The textured vertical lines obscure water spots and fingerprints while adding tactile depth.

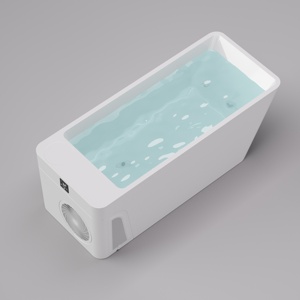

The global wellness explosion has transformed standard soaking tubs into bio-hacking cold plunge installations. All-in-one models incorporating secondary plumbing circuits, US local warehouse stocking, and specialized ozone disinfection systems cater directly to luxury home gyms, wellness resorts, and commercial spas.
Importing black acrylic bathtubs into regulated jurisdictions requires strict compliance documentation. Procurement teams must verify certification validity prior to issuing Letter of Credit (LC) terms:
As a leading supplier and exporter of black acrylic freestanding bathtubs, our manufacturing workflows are engineered to minimize defect rates to less than 0.08% across batch runs. The following diagram illustrates our 6-stage production and quality control framework:
High-density PMMA sheets are pre-heated to $160^\circ\text{C} - 180^\circ\text{C}$ in automated oven chambers, then vacuum-drawn over aluminum alloy molds to form precise internal and external shells without wall thinning.
Robotic arms apply resin-saturated glass fiber roving across the shell underside. High-density wooden reinforcement blocks are embedded in the base rim and floor for rigid fixture stability.
The inner ergonomic liner and outer aesthetic shell are bonded using proprietary acrylic structural adhesives, followed by 24-hour climate-controlled curing to eliminate visible joint seams.
5-axis CNC routers trim border flanges and drill precision openings for integrated pop-up drainers, overflow slots, and optional hydrotherapy jet nozzles.
Every unit undergoes 100% full-capacity water testing for 4 hours. Drains, overflow linkages, and cold plunge chiller connections are pressure-checked at 0.4 MPa.
Tubs are wrapped in anti-static protective film, corner-guarded with EPE foam, sealed inside heavy-duty 7-ply corrugated cartons, and mounted on heat-treated ISPM-15 wooden pallets.
Quality Assurance Tip for Importers: Always request a 24-Hour UV Chamber Accelerated Degradation Test Report when specifying matte black bathware. Low-grade carbon black pigments will chalk or turn charcoal gray after 500 hours of direct sun exposure, whereas high-grade acrylic maintains a Delta E ($\Delta E$) color variance below 0.8.
Integrating the core capabilities of NextGen Bathware, we stand as a premier global supplier and exporter specializing in high-grade sanitary installations, thermostatic shower systems, smart toilets, and architectural freestanding bathtubs.
Headquartered in Gujarat, India (Halvad Township), with local US warehouse hubs for fast-track logistics, our operational infrastructure is tailored to international commercial sourcing:
Common questions answered by our technical engineering and international trade compliance team.
Our standard MOQ for stock black acrylic models is 5 to 10 units per SKU, ideal for sample orders or small boutique hotel projects. For custom mold development or private-label branded cartons, our baseline MOQ is 1x20GP container (approx. 28-34 units depending on tub dimensions).
Every black acrylic tub is coated with a heavy-duty thermo-formed protective PE film that stays intact during shipping and installation. The surface is removed only after construction is finalized. Additionally, matte black units utilize cross-linked acrylic polymers that resist superficial scuffs and allow micro-scratches to be buffed out using 2000-grit wet sandpaper and specialized matte polishing compound.

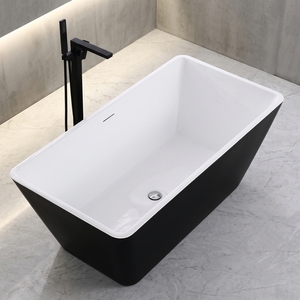

Yes. Our flagship freestanding bathtub models carry authentic cUPC certification issued by IAPMO, fully compliant with ASME A112.19.1/CSA B45.2 standards. Test documentation includes load performance, thermal shock endurance, and overflow rate verification for municipal building inspection approval.
For standard catalog configurations, standard production turnaround is 20 to 25 calendar days upon deposit confirmation. For custom colors, specialized fluting, or integrated cold plunge chiller connections, lead time is approximately 30 to 35 days.
Acrylic tubs feature a double-wall hollow cavity structure filled with ambient air space or high-density polyurethane insulation foam. This double-wall design traps air, creating a natural thermal barrier that keeps bath water warm significantly longer than solid mineral resin or cast stone tubs, which absorb heat rapidly from the water during the initial 10 minutes of filling.
Yes, select high-demand models (including our All-in-One Acrylic Cold Plunge Chiller Bathtub) are stocked in local US warehouse facilities. This allows North American distributors to access rapid 3-7 day domestic freight delivery without committing to full container ocean shipping lead times.
Partner with a trusted exporter of high-grade black acrylic freestanding bathtubs. Connect directly with our engineering team for technical specifications, CAD drawings, and FOB/CIF price schedules.
