Explore our certified commercial-grade concealed thermostatic shower sets, featuring precision ceramic & wax/SMA valve cores, multi-way divertive engineering, solid brass heavy-duty rough-in boxes, and anti-scald hydro-balancing technology. Sourced directly from premier OEM/ODM manufacturing facilities in China.
The global luxury sanitaryware landscape has undergone a paradigm shift toward concealed, minimalist architectural bath fixtures. Central to this design trend is the Concealed Thermostatic Waterfall Shower Valve—an intricate mechanical component that integrates fluid dynamics, precise thermal sensing, pressure-balancing cartridge architecture, and high-volume water distribution behind finished tile walls.
China’s manufacturing ecosystem, particularly across primary sanitaryware production hubs in Kaiping (Guangdong), Wenzhou (Zhejiang), and Taizhou (Zhejiang), accounts for over 65% of global OEM/ODM output for thermostatic valves. Modern Chinese factories have transitioned from traditional brass casting to ultra-precision CNC multi-axis machining, automated SMA (Shape Memory Alloy) cartridge assembly, and state-of-the-art PVD (Physical Vapor Deposition) surface finishing technologies. For international buyers, real estate developers, brand owners, and procurement directors, navigating this ecosystem requires deep technical visibility into component engineering, material metallurgy, pressure differentials, and global compliance certifications such as cUPC, WRAS, CE, and EN1111.
Engineered using Vernet (France) or high-grade proprietary Chinese SMA wax-pellet elements, maintaining discharge temperatures within ±0.5°C under dynamic pressure fluctuation.

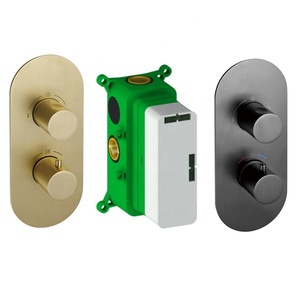

Heavy-duty ABS or forged brass installation enclosures with built-in spirit levels, standardized NPT/G1/2" threads, and waterproof elastomeric seal collars.
Internal fluid channel optimization reducing backpressure while supporting flow rates of 18–35 L/min at 0.3MPa, catering to combined waterfall, rain head, and jet body sprays.
A premium concealed thermostatic shower valve must withstand constant hydraulic pressure, thermal cycling from 5°C to 85°C, and aggressive water chemistry without mineral calcification or metallic leeching. Premier Chinese exporters utilize standard-compliant metallurgy to meet rigorous international environmental standards.
The structural shell and water-way channels are gravity-cast or hot-forged using HPb59-1 lead-refined brass or European CW617N / CZ122 brass alloys. For strict environmental markets like California (AB1953) and North America, leading factories supply DZR (Dezincification Resistant) lead-free brass (<0.25% lead content). This prevents selective zinc leaching in soft water conditions, preventing structural cracking and micro-fissures over long service cycles.
The internal core relies on thermo-sensitive expansion. Modern high-end Chinese factories equip valves with two distinct technologies:
To quantify the ROI for global distributors and project developers, the technical matrix below outlines performance parameters comparing advanced concealed thermostatic waterfall valves with traditional exposed or manual pressure-balance mixing valves.
| Performance Vector | China Tier-1 Concealed Thermostatic Valve | Traditional Manual Pressure Balance Valve | Standard Exposed Dual-Lever Mixer |
|---|---|---|---|
| Temperature Stability | ±0.5°C via automatic thermal sensor | ±2.0°C (susceptible to pressure drops) | Manual control only (High scald risk) |
| Anti-Scald Safety Cut-Off | Instantaneous (<0.2 seconds) | Delayed (1.5 - 3.0 seconds) | None |
| Waterway Multi-Functionality | Up to 5-Way (Waterfall, Rain, Handheld, Body Jets, Spout) | 1-Way or 2-Way Diverter max | 1-Way or 2-Way max |
| Flow Rate Output (at 0.3 MPa) | 25 - 38 L/min (High-Volume Waterfall Capable) | 12 - 18 L/min | 14 - 20 L/min |
| In-Wall Maintenance | Easy access via rough-in box front faceplate | Requires tile demolition for valve repair | Exposed pipes; vulnerable to physical impact |
| Plating Surface Resilience | PVD Coating / 24-hr ASS Salt Spray Certified | Basic Electroplating / 8-hr NSS | Standard Chrome / 12-hr NSS |
As smart home integration and sustainable architecture become standard requirements in high-end real estate, Chinese concealed thermostatic waterfall valve manufacturers are introducing innovative features into their wholesale OEM catalogs:

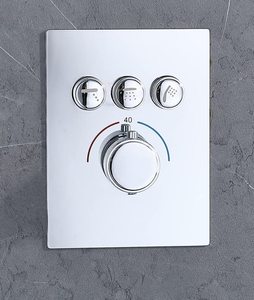

Traditional rotational diverter knobs are being rapidly replaced by mechanical Piano Push-Button Selectors. These allow end-users to operate multiple outlets simultaneously—for example, running a cascading waterfall shower while simultaneously engaging hydrotherapy body jets. Each button operates an independent ceramic disc cartridge, drastically reducing internal mechanical friction and wear.
Next-generation concealed valves integrate micro hydro-turbines within the valve casting. Water flow generates low-voltage electrical power to drive real-time digital LCD temperature and shower duration screens—eliminating the need for external electrical wiring or battery replacement inside wet wall cavities.
Chrome is no longer the single market standard. Global buyers are increasingly procuring Physical Vapor Deposition (PVD) finishes including Brushed Metallic Gold, Matte Gunmetal Gray, Rose Gold, and Anti-Fingerprint Electro-Black. PVD coating provides a diamond-like hardness (HV > 2000), making the surface impervious to scratching, chemical discoloration, and atmospheric oxidation.
To satisfy LEED environmental standards and strict European CE / WaterSense targets, modern valves feature dynamic fluid regulators that maintain rich waterfall aesthetic cascades while keeping cumulative water consumption under standard eco-thresholds (e.g., 1.8 GPM per functional zone).
Navigating B2B procurement with premier Chinese factories offers distinct strategic advantages for global sanitaryware brands, wholesale importers, and commercial construction vendors:
Leading export factories mandate 100% pneumatic air testing (at 0.6MPa) to detect micro-porosities in raw castings, followed by 100% dynamic water testing (at 0.8MPa) prior to boxing to guarantee zero field leakage.
From custom laser logo etching on heavy brass faceplates to customized rough-in box depth dimensions for timber stud or solid concrete wall construction, exporters offer complete OEM branding packages.
With established logistics routes, comprehensive export customs clearance documentation (IEC/GST compliance), and rapid sample dispatch (as fast as 3-day shipping), procurement friction is fully minimized.
Streamline your sanitaryware supply chain with certified, precision-engineered concealed waterfall thermostatic shower valves. Request factory-direct wholesale pricing, CAD technical drawings, or custom OEM quotes today.
